IP Based Intercom Microphone

TERRA-K

- Multi-function Ip based microphone
- Designed for Full Duplex intercom and paging
- One built-in button

The TERRA-K is an IP, PoE multi-function microphone console, designed for full duplex intercom and paging using Unicast, Multicast & Broadcast over LAN/WAN. It comes with a gooseneck microphone and built-in monitor loudspeaker.

It can also be used with TerraManager to perform a recording function. Its pre-chime and post-chime can be configured via the web browser interface. It also has 2 LED indications and one button on the front panel, which displays device status and triggers certain functions.

Model:

TERRA-K: IP based Intercom Microphone

High quality gooseneck microphone and built-in loudspeaker (2.5 W)
Web browser interface for device management and monitor
PoE or 24 VDC power supply (if PoE is not available)
Support G.711, G.722, G.726, G.727, G.729, MP3 audio codec and AAC+ decoder
Paging to pre-defined zones
Pre-recorded announcement and dynamic zone paging via TerraManager
Full duplex intercom with Noise Reduction
Push-to-talk button, Talk LED and Power LED
Power consumption: 3.12 W
Weight: 0.8 Kg
Dimensions (DxHxW): 125 x 350 135 mm

Terra-K application

English

Type	File Name	Download
Catalogue
[PDF]	TERRACOM_Catalogue
Brochure
[PDF]	TERRACOM_Brochure
Datasheet
[PDF]	TERRA-K_Datasheet

Related products

Touch-Screen IP Paging Console

Touch-Screen IP Paging Console PPM-IT5

IP Audio Decoder

IP Audio Decoder TERRA-EX

IP Audio Encoder/Decoder

IP Audio Encoder/Decoder TERRA-IEX

IP Full Duplex Intercom Terminal

IP Full Duplex Intercom Terminal TERRA-FDX

Amplified IP Audio Terminal

Amplified IP Audio Terminal TERRA-AMP

IP Telecom Gateway

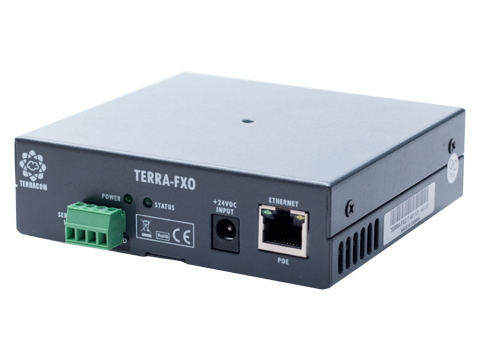

IP Telecom Gateway TERRA-FXO

Contact I/O Terminal over IP

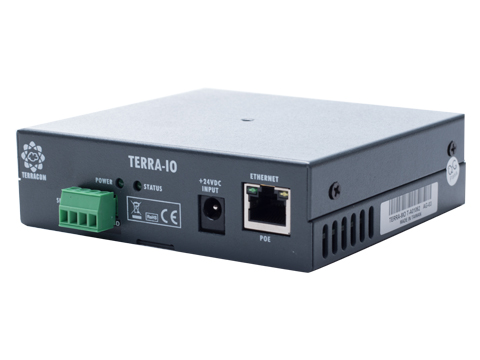

Contact I/O Terminal over IP TERRA-IO
