Fire Intercom Unit

TERRA-FIT

  • - Full duplex audio with Acoustic Echo Cancellation and Ambient Noise Reduction
  • - Built-in monitor loudspeaker
  • - High sensitivity, omni-directional microphone
  • - Simple push to call button to initiate 2 way communication

  • Fire Intercom Unit (0)

The Emergency Voice Communications System (EVCS) from TERRACOM is designed for emergency intercom such as fire, disabled refuge and help point. This system allows people who needs help to call the emergency control center, and the control center also can call end points.

The EVCS is consisted of Terra-NBX network audio branch exchanger, and a digital wall-mount intercom unit: TERRA-FIT fire intercom unit.

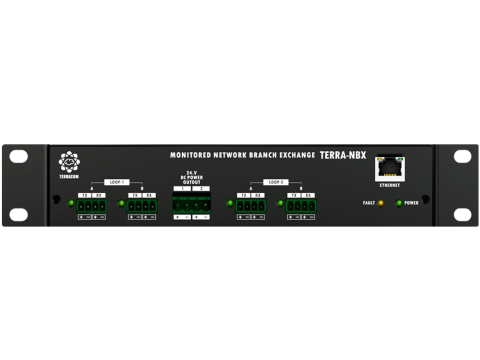

The TERRA-NBX unit  is powered by AC mains power and/or connect to a external backup 24VDC power supply. TERRA-FIT can be powered from TERRA-NBX directly  or locally. TERRA-NBX has 4 communication ports (2 redundant loops), each port can connect up to 16 TERRA-FIT, and up to 64 TERRA-FIT (4 ports x 16 Terra-FIT) can be wired in daisy chain or 32 TERRA-FIT (2 loops x 16 TERRA-FIT) per TERRA-NBX.


  • Built-in monitor loudspeaker
  • High sensitivity, omni-directional microphone
  • Stainless steel finish on front panel
  • Simple push to call button to initiate 2 way communication
  • Braille characters (call button) on the front panel for the visually impaired
  • Call button LED indicates 3 modes: intercom, request to speak and page by TerraManager for the hearing impaired
  • Fault indication on front panel, web browser and TerraManager
  • Full duplex audio with Acoustic Echo Cancellation and Ambient Noise Reduction
  • Connect to TERRA-NBX or TERRA-FIT with a maximum distance of 250m via STP CAT5/6 cable

Indication

  • Power LED & Fault LED
  • 3 status modes on call button LED
    • Light up: The TERRA-FIT is in intercom with TerraManager
    • Flash slowly: The TERRA-FIT is requesting and waiting for TerraManager to intercom
    • Flash quickly: The TerraManager is paging to TERRA-FIT devices

    Power

    • Supplied from Terra-NBX or local external 24 VDC
    • Power consumption
      • Active mode: 1.07W (max.)
      • Sleep mode: 0.7W

      Network cables

      • Connector: Euro-block
      • Cables: STP twist pair cable
      • Distance: 250m (max.) between TERRA-NBX and TERRA-FIT, TERRA-FIT and TERRA-FIT

      Mechanical

      • Dimension (W x H x D): 87 x 147 x 47 mm
      • Net weight: 0.4 kg
      • Colour: Stainless steel brush
      • High-rise buildings, commercial offices
      • Department stores, leisure center
      • Education institution, university campus
      • Retail & shopping malls
      • Industrial & warehouse
      • Hospital, health center
