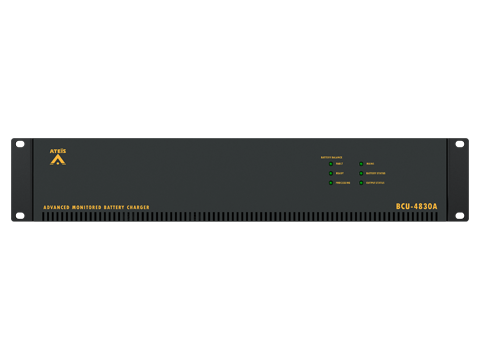

The SONAES series of battery chargers (24 VDC) are intended for a Voice Alarm System. The battery chargers are microprocessor based devices that have been designed to charge lead-acid batteries (backup batteries connected to the Voice Alarm System) and, simultaneously, to provide power to auxiliary devices such as the DIVA, IDA8 and PRIMA VA system controllers.
The SONEAS battery chargers, which are fully compliant with EN54-4, offers a maximum charge current of 6 or 12 A. The battery charger is 2U high.
Models:
- SON 24V 6A MS40 RACK: SONAES, Charger and Monitoring Unit, 2U 6A rack mount charger - EN54-4 compliant
- SON 24V 12A MS150 RACK: SONAES, Charger and Monitoring Unit, 2U 12A rack mount charger - EN54-4 compliant
Electrical
Mains power sypply
- Voltage: 230 VAC ±15 %, 50/60 Hz
- Power Consumption:
- SON 24V 6A MS40 RACK: 190W at full load
- SON 24V 12A MS150 RACK: 380W at full load
Battery power supply
- Voltage: 24 VDC
- Maximum charging current:
- SON 24V 6A MS40 RACK: 6A
- SON 24V 12A MS150 RACK: 12A
Outputs
- Main for amplifiers:
- SON 24V 6A MS40 RACK: max. 40A for 2 outputs
- SON 24V 12A MS150 RACK: max. 150A for 6 outputs
- Auxiliary for controllers: 3
- Maximum current: 5A
Batteries
Environmental
- Operating temperature: -5 ºC ~ +45 ºC
- Storage temperature: -25 ºC ~ +85 ºC
- Relative humidity: 20% to 95%
- Air pressure: 600 to 1100 h Pa
Mechanical
- Dimensions (W x H x D):
- SON 24V 6A MS40 RACK: 483 x 88 x 355 mm
- SON 24V 12A MS150 RACK: 483 x 88 x 398 mm
- Weight:
- SON 24V 6A MS40 RACK: 3.1 kg
- SON 24V 12A MS150 RACK: 5.4 kg
- Mounting: 19" rackmount
- Colour: RAL7016
- IP rate: IP30
- Train stations
- Stadiums
- Congress centers
- Exhibition grounds
- Shopping malls
- Airports
- Subway stations
- Industrials sites
- Offices tower
- ....
